Keysight N9048B RF Spectrum Analyzer and EMI Test Receiver with 1Hz to 44GHz Frequency Range and 40 MHz Max Analysis Bandwidth

Name: Keysight N9048B RF Spectrum Analyzer and EMI Test Receiver with 1Hz to 44GHz Frequency Range and 40 MHz Max Analysis Bandwidth
Brand: Keysight
Price: 1 USD

Buy cheap Keysight N9048B RF Spectrum Analyzer and EMI Test Receiver with 1Hz to 44GHz Frequency Range and 40 MHz Max Analysis Bandwidth product

Brand Name : Keysight

Model Number : N9048B

Certification : ISO17025

Place of Origin : USA

MOQ : 1 set

Price : negotiable

Delivery Time : 1-3 working days

Model : N9048b

Frequency Range : Hz – 44 GHz (base; configurable to 3.6/8.4/26.5 GHz)

Max Analysis Bandwidth : 40 MHz

Max Real-Time Bandwidth : 350 MHz

Capture Memory : 2 GB

Operating System : WD 10

Contact Now

Keysight N9048B RF Spectrum Analyzer PXE EMI Receiver 1Hz To 44GHz

Product Overview

Keysight's N9048B PXE is a standards-compliant EMI test receiver equipped with an RF pre-selector and LNA designs. Shorten your overall test time and easily perform gapless signal capture and analysis with real-time scan (RTS) capabilities.

Frequency range of 1 Hz - 44 GHz
Fully CISPR 16-1-1:2019, MIL-STD-461G, ANSI C63.2, and FCC compliant
Enhanced sensitivity and dynamic range
Time domain scan (TDS) significantly reduces overall test time
Intuitive multi-touch user interface and PXE software
X-Series upgradability to meet present and future test needs

Frequency and Time Specifications

Frequency Range	DC Coupled	AC Coupled
Input 1
Option 503	1 Hz to 3.6 GHz	10 MHz to 3.6 GHz
Option 508	1 Hz to 8.4 GHz	10 MHz to 8.4 GHz
Option 526	1 Hz to 26.5 GHz	10 MHz to 26.5 GHz
Option 544	1 Hz to 44 GHz	NA
Input 2
Option 503, 508 or 526	1 Hz to 1 GHz	10 MHz to 1 GHz
Option 544	1 Hz to 1 GHz	NA

Band	LO Multiple (N)	Frequency Range
0	1	1 Hz to 3.6 GHz
1	1	3.5 to 8.4 GHz
2	2	8.3 to 13.6 GHz
3	2	13.5 to 17.1 GHz
4	4	17.0 to 26.5 GHz
5	4	26.4 to 34.5 GHz
6	8	34.4 to 44 GHz

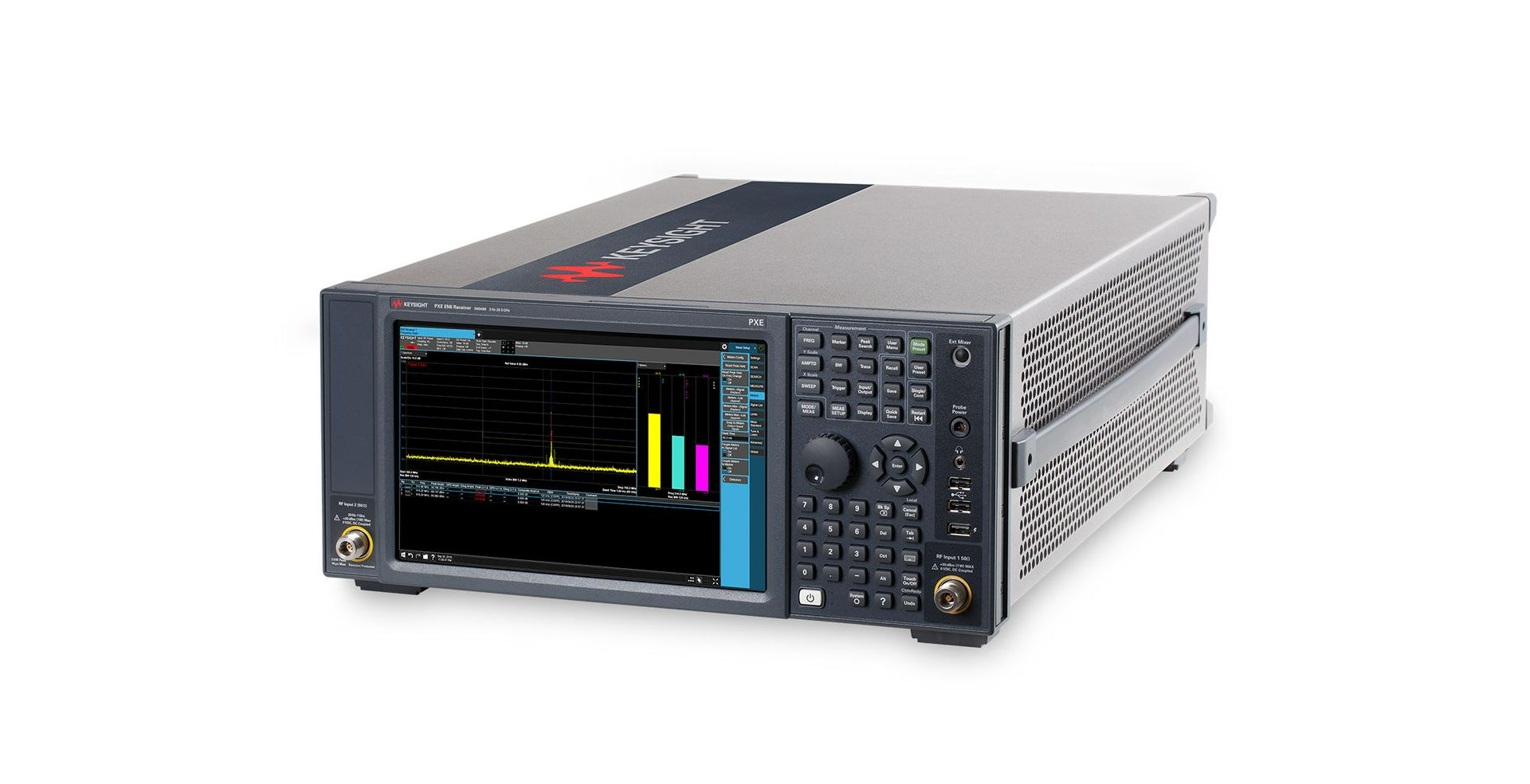

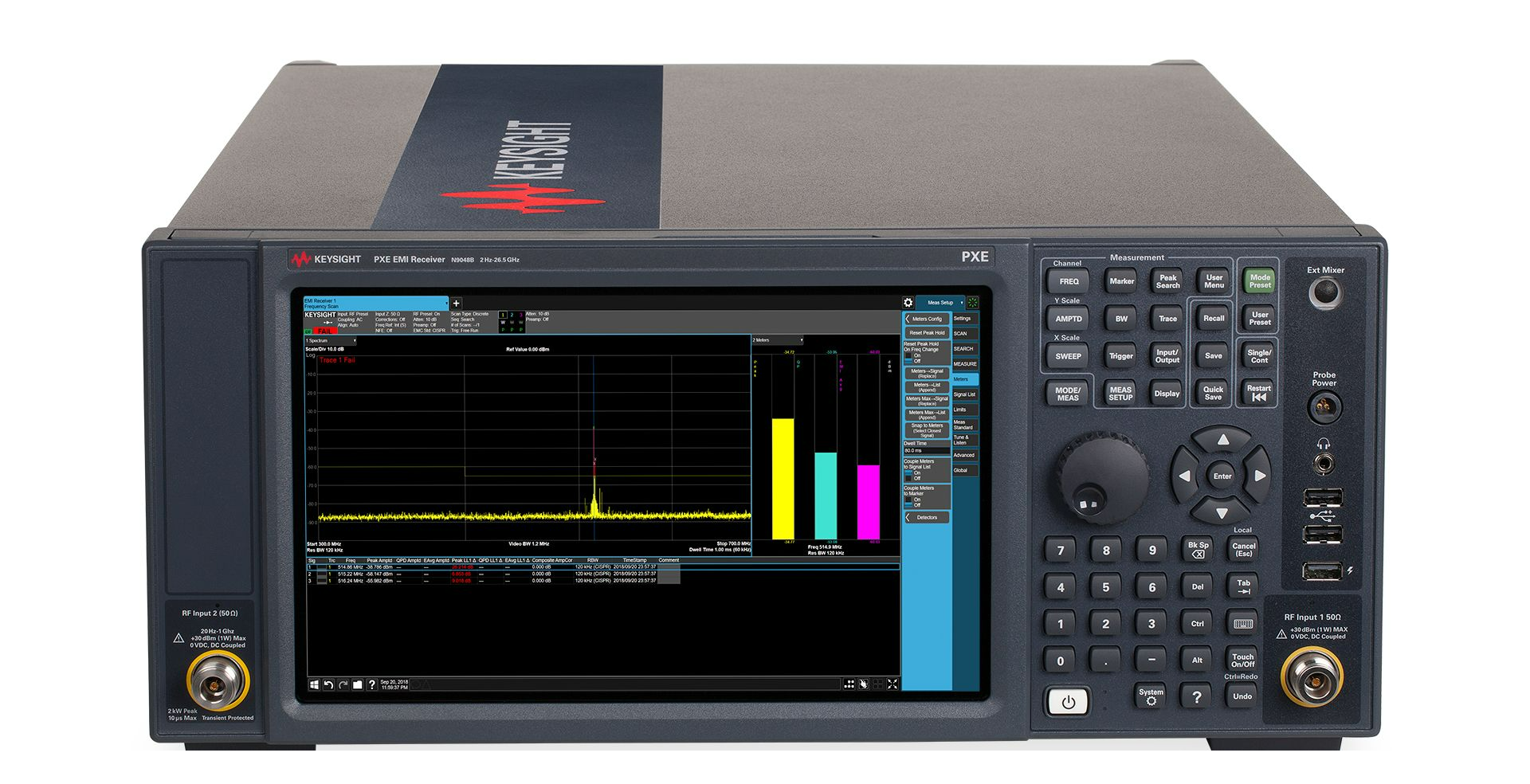

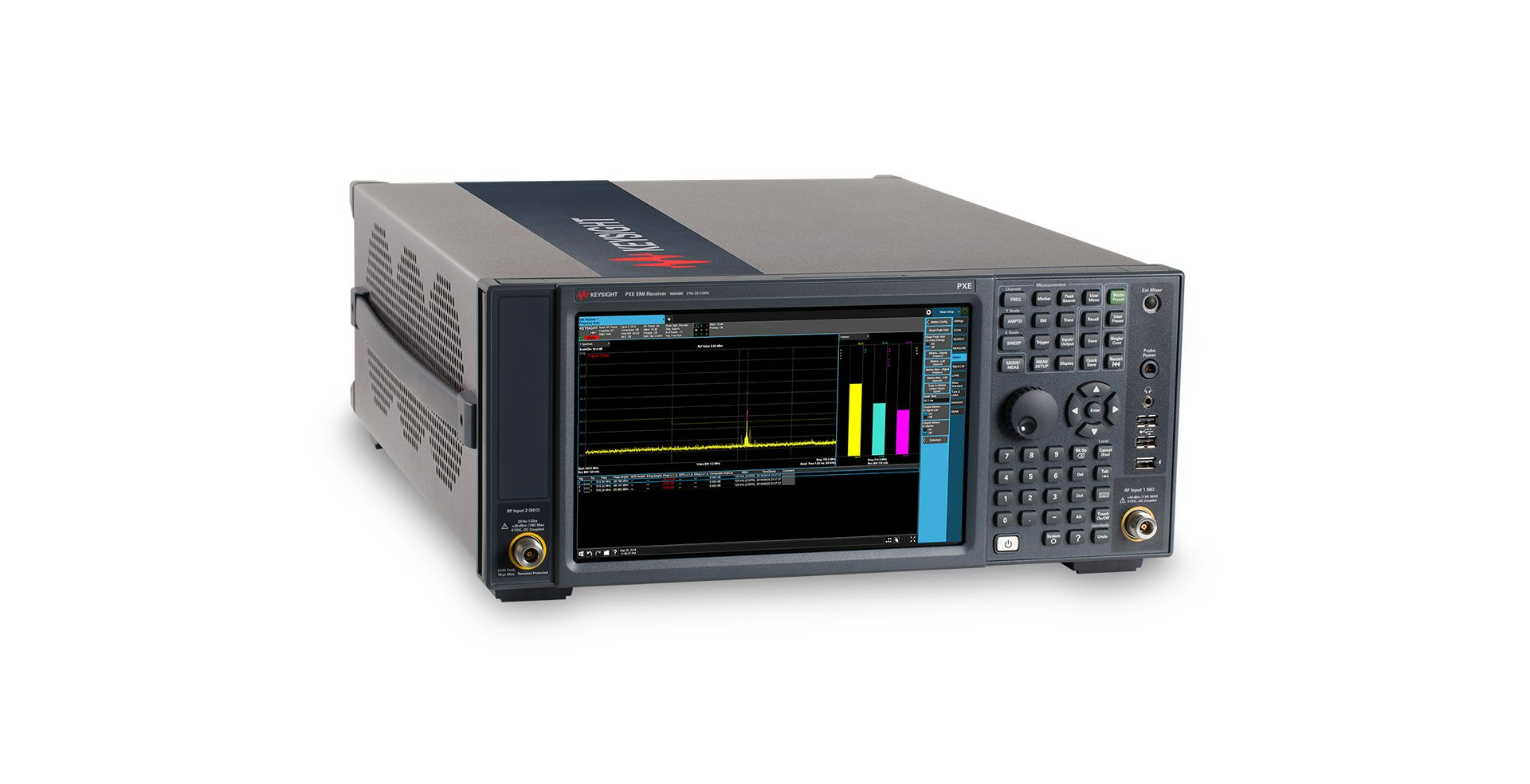

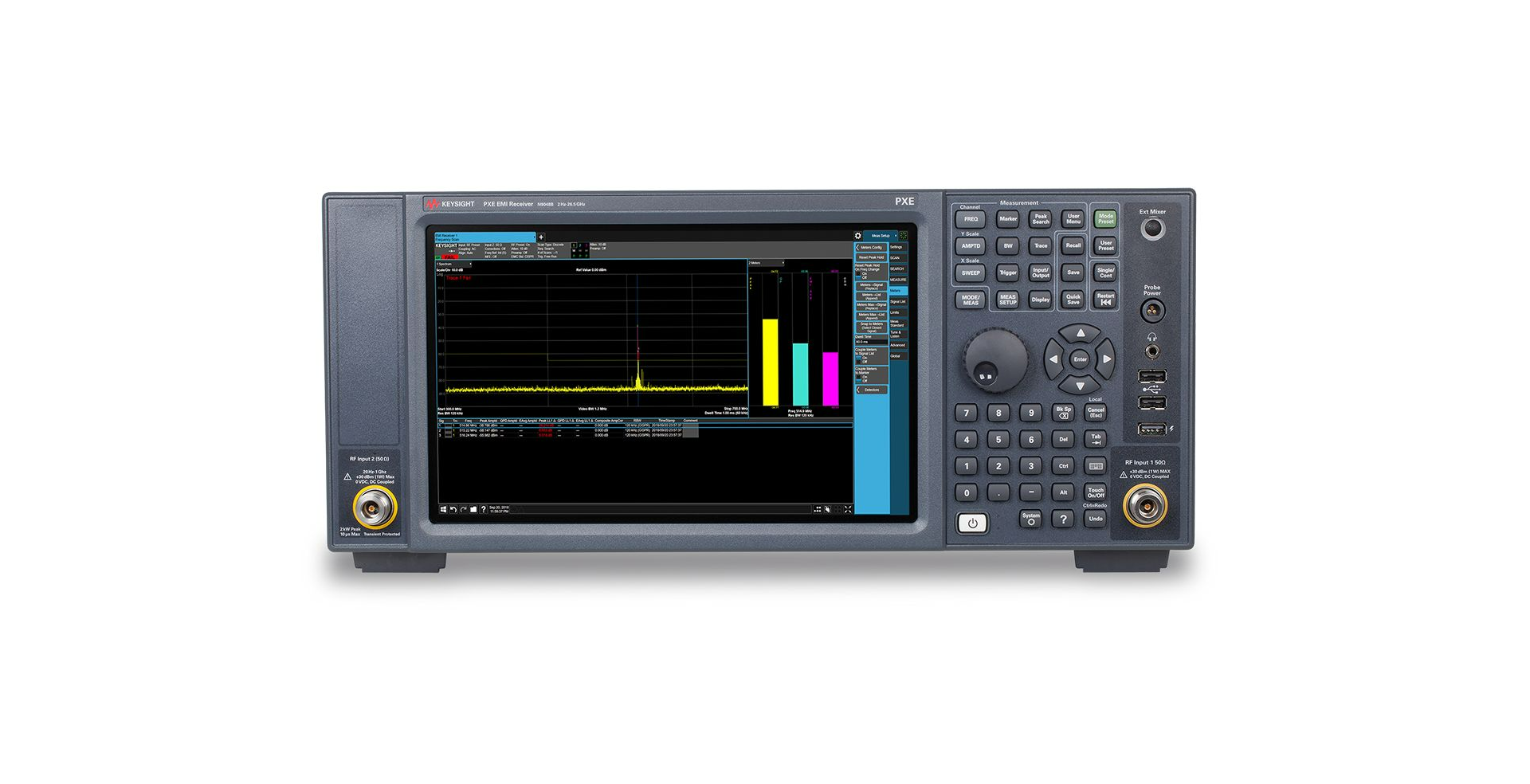

Product Images

Keysight N9048B RF Spectrum Analyzer and EMI Test Receiver with 1Hz to 44GHz Frequency Range and 40 MHz Max Analysis Bandwidth

Keysight N9048B RF Spectrum Analyzer and EMI Test Receiver with 1Hz to 44GHz Frequency Range and 40 MHz Max Analysis Bandwidth Images
