Reliable Yokogawa WT332E 2-phase Digital Power Analyzer with 100 kHz Frequency Bandwidth and 0.1% Accuracy

Brand Name : Yokogawa

Model Number : WT332E

Certification : ISO17025

Place of Origin : Japan

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Packaging Details : carton

Product Name : Power Meter

Current measurement range direct input : 6 measuring ranges/0.5...20 A

Frequency bandwidth : DC 0.1 Hz...100 kHz

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Sampling rate : 100 kS/s (16 bit)

Contact Now

Reliable Yokogawa WT332E 2 Phase Digital Power Analyzer

Tested in good condition, this 2-phase digital watt power meter offers high accuracy and reliable performance for industrial applications.

Product Overview

The Yokogawa WT332E is a 2-phase digital watt meter featuring basic accuracy of ±(0.1% from measured power value + 0.05% from RMS measurement range). It includes 6 voltage ranges (15...600 VRMS with crest factor 3) and 6 current ranges (0.5 ARMS...20 ARMS with crest factor 3).

This instrument measures VRMS, Vmean, V_DC, Vpeak, ARMS, A_DC, Apeak, W, VA, var, cos phi, deg, ±Wh, ±Ah, CF, h, Hz and includes mathematical functions. Standard features include integrator, measurement data memory, maximum value memory, filter, and frequency counter.

Key Features & Benefits
  • 2-phase digital watt meter with high accuracy and fast display/data update
  • Standby measurements compliant with IEC62301/EN50564, Energy Star and SPECpower
  • Easy integration into PLC environments with Modbus/TCP (Ethernet)
  • Compact design ideal for precise measurement of power consumption
  • Perfect for energy efficiency and energy saving studies
  • Lowest current measurements from 50 µA with specified accuracy
  • Simultaneous harmonic analysis with high bandwidth
  • Automatic adjustment of data update rate and range switching
  • Frequency bandwidth: DC, 0.1 Hz...100 kHz
  • Signals with crest factors up to 300 measurable in all ranges
  • 4x 7-segment LED displays with 100 kS/s sampling rate (16 bit)
  • Harmonics analysis including THD calculation up to 50th order available
  • Comparator function and automatic range setting in integration mode
  • Free PC application software WTViewerEfree included
Technical Specifications
  • Basic accuracy for power measurements (50/60 Hz): ±(0.1% of measured value + 0.05% of RMS range)
  • Current measurement range (direct input): 6 measuring ranges/0.5...20 A
  • RMS voltage ranges: 6 measuring ranges/15...600 V
  • External sensor input EX1: 2.5/5/10 V; EX2: 50/100/200/500 mV/1/2 V
  • Frequency measurement: 2 channels (voltage and current)
  • Sampling rate: 100 kS/s (16 bit)
  • Data update rate: 100/250/500 ms/1/2/5/10/20 s, Auto
Available Options
Option Description
Standard USB
-C1 GPIB/IEEE488 interface (select one: -C1 or -C2)
-C2 RS232C interface (select one: -C1 or -C2)
-C7 Ethernet interface incl. Modbus-TCP protocol
-EX1 External sensor input 2.5 V/5 V/10 V
-EX2 External sensor input 50 mV/100 mV/200 mV/500 mV/1 V/2 V
-G5 Harmonics measurement
-DA12 D/A output (12 channels)
-SPU Modified voltage range 30...1200 VRMS (max. input voltage 1000 VRMSf), frequency range DC...30 kHz
-SPI0,05 Modified current range 25 mARMS...1 ARMS
-SPI0,1 Modified current range 50 mARMS...2 ARMS
Our Service Commitment
  • One-stop service from manufacture to shipping
  • Inquiry responses within 24 hours
  • Well-trained, experienced English-speaking staff
  • Distributor support for unique designs and current models
  • Protection of your sales area, design ideas, and private information
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we ship worldwide.
What delivery methods do you use and what is the delivery time?
We ship via EMS, DHL, FedEx, UPS, TNT with tracking numbers. Standard delivery time is 4-7 business days.
What is your payment term?
100% T/T payment before shipment.
How can I ask additional questions?
You can contact us online or leave messages below.

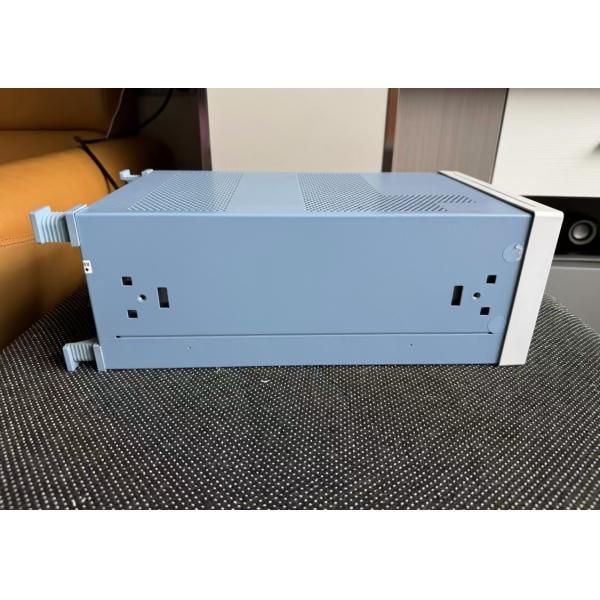

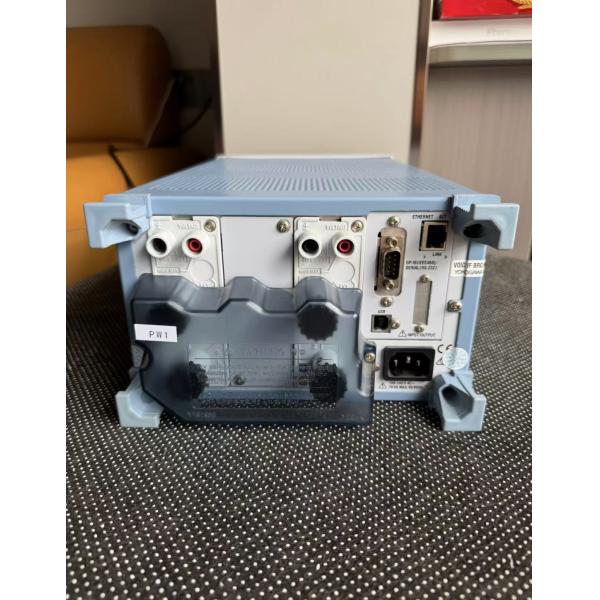

Product Images
Reliable Yokogawa WT332E 2-phase Digital Power Analyzer with 100 kHz Frequency Bandwidth and 0.1% Accuracy Reliable Yokogawa WT332E 2-phase Digital Power Analyzer with 100 kHz Frequency Bandwidth and 0.1% Accuracy Reliable Yokogawa WT332E 2-phase Digital Power Analyzer with 100 kHz Frequency Bandwidth and 0.1% Accuracy Reliable Yokogawa WT332E 2-phase Digital Power Analyzer with 100 kHz Frequency Bandwidth and 0.1% Accuracy
